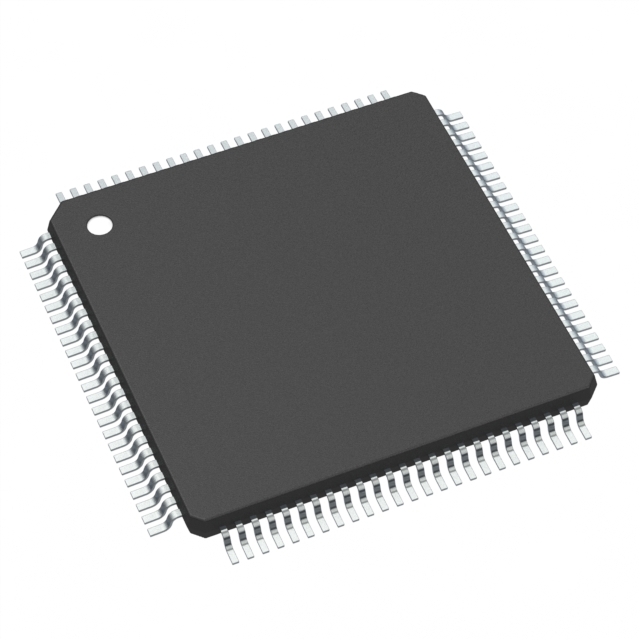

ARM® Cortex®-M4 STM32F3 Microcontroller IC 32-Bit 72MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
Преобразователи данных
A/D 17x12b, D/A 1x12b
Размер сердечника
32-Bit
ядро процессора
ARM® Cortex®-M4
связь
CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
Номер базового номера
STM32F302
Обзор
STM32F302VCT6 Обзор
The STM32F302VCT6 is a high-performance 32-bit microcontroller launched by STMicroelectronics. It uses the ARM® Cortex®-M4 core with a main frequency of up to 72 MHz. It is suitable for industrial control, audio processing, sensor fusion and Internet of Things (IoT) applications. This MCU is equipped with 256 KB Flash memory, 48 KB SRAM, and integrates a rich peripheral interface, including 3 SPI, 2 I2C, 3 USART, 1 CAN, 1 USB 2.0, and 1 12-bit ADC, which is very suitable for high-speed data transmission and multi-channel signal acquisition.
The STM32F302VCT6 has excellent low-power characteristics, supports multiple low-power modes such as Sleep, Stop, Standby, and can work stably within the voltage range of 2.0V to 3.6V, which is particularly suitable for battery-powered, portable devices and efficient energy management applications. In addition, the STM32F302VCT6 is equipped with a floating point unit (FPU), which can efficiently handle complex mathematical operations and is suitable for high-performance digital signal processing (DSP) tasks.
As a strategic partner of Futuretech Components, we provide STM32F302VCT6 and other STMicroelectronics related products, with rich technical support and fast supply chain services to ensure that customers can efficiently design and implement stable embedded systems.
STM32F302VCT6 Обзор
The STM32F302VCT6 is a high-performance 32-bit microcontroller launched by STMicroelectronics. It uses the ARM® Cortex®-M4 core with a main frequency of up to 72 MHz. It is suitable for industrial control, audio processing, sensor fusion and Internet of Things (IoT) applications. This MCU is equipped with 256 KB Flash memory, 48 KB SRAM, and integrates a rich peripheral interface, including 3 SPI, 2 I2C, 3 USART, 1 CAN, 1 USB 2.0, and 1 12-bit ADC, which is very suitable for high-speed data transmission and multi-channel signal acquisition.
The STM32F302VCT6 has excellent low-power characteristics, supports multiple low-power modes such as Sleep, Stop, Standby, and can work stably within the voltage range of 2.0V to 3.6V, which is particularly suitable for battery-powered, portable devices and efficient energy management applications. In addition, the STM32F302VCT6 is equipped with a floating point unit (FPU), which can efficiently handle complex mathematical operations and is suitable for high-performance digital signal processing (DSP) tasks.
As a strategic partner of Futuretech Components, we provide STM32F302VCT6 and other STMicroelectronics related products, with rich technical support and fast supply chain services to ensure that customers can efficiently design and implement stable embedded systems.
Мы установили долгосрочные партнерские отношения с крупными поставщиками глобальной логистики, предлагая гибкие и эффективные решения для доставки, адаптированные к вашим уникальным потребностям.В зависимости от размера, веса и пункта назначения вашего заказа, мы выбираем наиболее подходящего перевозчика.Мы также предоставляем услуги отслеживания логистики в реальном времени, позволяя клиентам понимать местоположение и статус своих товаров в любое время. Если у вас есть конкретные международные маршруты доставки или назначенный экспедитор, свяжитесь с нашей командой по продажам-мы рады удовлетворить ваши требования.
Мы поддерживаем несколько методов оплаты, включая кредитные карты, проводные переводы и другие варианты, и принимаем большинство валют.Для заказов, размещенных в долларах США, доступны дополнительные варианты оплаты.Для получения более подробной информации о методах и процедурах оплаты, пожалуйста, свяжитесь с нашей командой по продажам.
Ниже приведены продукты, связанные с STM32F302VCT6.
